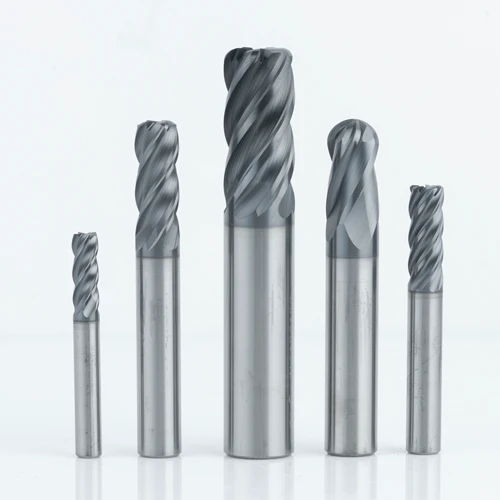

Endmillsyog tsim rau ua hardened steel, nag lossis daus hardening stainless hlau, titanium alloy, thiab lwm yam.endmillsfeature zoo heev slot milling kev ua tau zoo, siab zog ntawm txiav ntug thiab zoo heev chipping muaj peev xwm. Kev tsim tshwj xeeb rau qhov sib npaug ntawm qhov sib npaug thiab qhov tsis sib xws ntawm kev kawm tiav ua rau cov txheej txheem txiav ruaj khov. Tshwj xeeb parabolic nti flute tsim muaj peev xwm tshem tawm nti zoo heev.
Feature
Haum rau kev ua cov hlau tawv tawv, nag lossis daus hardening stainless hlau, titanium alloy, thiab lwm yam nyuaj - rau - cov khoom siv tshuab.Cov cuab yeej muab kev txhim khu kev qha txiav kev ua tau zoo thiab kev ua haujlwm zoo heev thaum ua haujlwm nrog siab -hardness thiab siab - cov ntaub ntawv muaj zog.
Qhov zoo tshaj plaws milling kev ua tau zoo nrog kev txiav siab -ntug zog thiab zoo heev chipping kuj.Lub zog txiav ntug tswj xyuas qhov ua tau zoo nyob rau hauv cov kev txiav hnyav, pab txo cov npoo chipping thiab txhim kho lub neej ntawm cov cuab yeej.
Tshwj xeeb tsis sib npaug helix thiab tsis sib npaug flute spacing tsim rau txoj kev txiav ruaj khov dua.Lub optimized geometry zoo txo kev vibration thiab txiav resonance, uas ua rau smoother machining, txhim kho nto zoo, thiab zoo ib yam li kev txiav.
Tshwj xeeb parabolic nti flute tsim rau cov nti khiav tawm thiab txhim kho kev ua haujlwm.Qhov zoo tshaj plaws flute geometry txhawb nqa cov nti tshem tawm du thaum lub sijhawm ua haujlwm, txo cov nti sib sau ua ke, thiab pab tswj kev ua haujlwm ruaj khov txawm tias nyob rau hauv siab -load machining tej yam kev mob.
Daim ntawv thov
|
Khoom siv ua haujlwm |
|||||
|
P |
M |
K |
S |
||
|
1234 |
5 |
123 |
123 |
123 |
4 |
|
Cov pa roj carbon steel, |
Hlau alloy, |
Stainless hlau |
Cast Iron |
Kub-resistant |
Titanium alloys |
|
◎ |
◎ |
◎ |
○ |
○ |
◎ |
|
◎ |
Tsim nyog tshaj |
○ |
Tsim nyog |
||
Cov ntaub ntawv thov
SS600 daim ntawv thov rooj plaub (Tshav kub dissipation phaj)
|
Specification |
Qauv: SS600-S4-02506 |
|
Dimension |
D2.5*6*50*d4 |
|
Khoom siv |
30CrMoSiA (42HRC) |
|
Txiav ceev |
Vc =40m/min |
|
Pub tus nqi |
fz =0.04mm/z |
|
Txiav qhov tob |
ap=0.5mm, ae=2.0mm |
|
Txoj kev txias |
emulsion |
|
Txiav txoj kev |
Slotting |
